How to maintain

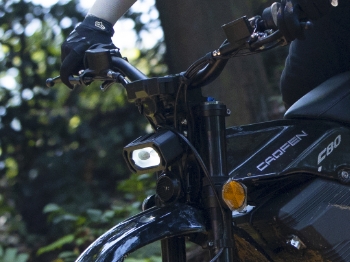

Headlights
The headlights on an e-motorcycle are crucial for ensuring visibility and safety while riding. To maintain them, regularly clean the lens with a soft cloth and check for any dirt or grime buildup. If the headlights are not functioning properly, consult the user manual to learn how to replace them or consider taking the e-motorcycle to a professional for assistance.

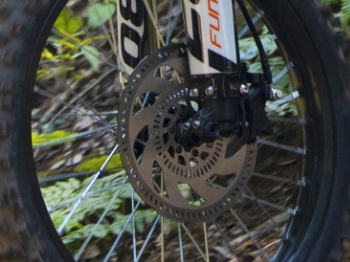

Brake Pads
Brake force is generated by pressing friction material in brake shoes or pads, varying based on vehicle weight. These shoes and pads are designed to perform optimally, and wear increases with usage, necessitating periodic inspection and replacement.

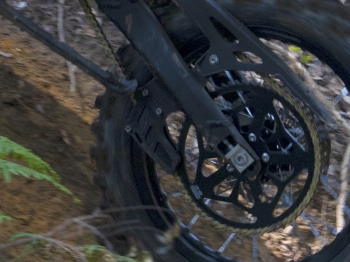

Chain
Drive chains are ideal for harsh environments like rain, dust, or sand, transmitting power effectively and performing at their full potential. If slack increases or movement is not smooth, inspect and replace.

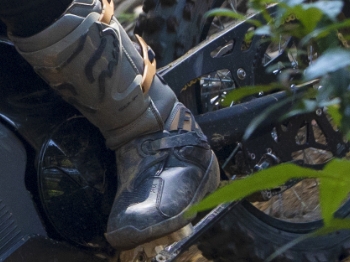

Motor
The e-motorcycle’s motor converts electrical energy into mechanical energy, driving the vehicle forward. Regular inspections are crucial for maintenance. If the motor fails or needs replacement, consult a professional technician or manufacturer for assistance.

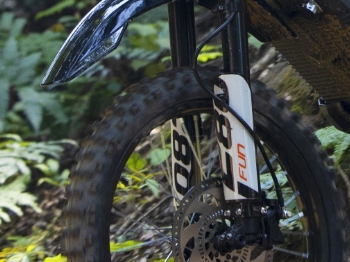

Front Forks
Front forks on e-motorcycles provide suspension and damping, ensuring a smooth ride. If replacement is needed, old forks can be removed by loosening triple clamp bolts, and new forks installed by reversing the process.

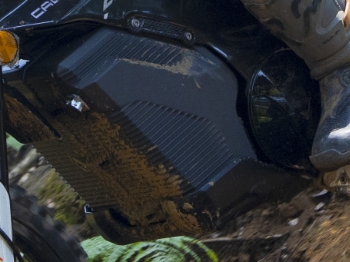

Battery
Non-removable batteries on e-motorcycles offer a streamlined design without a separate compartment. Maintaining the battery involves following manufacturer instructions, avoiding extreme temperatures, and charging regularly. Consult a professional for safe removal and installation.

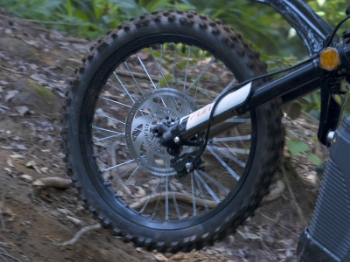

Wheels
Caofen wheels support vehicle weight and provide traction. Maintain by inspecting tire pressure, checking tire wear, and ensuring alignment.

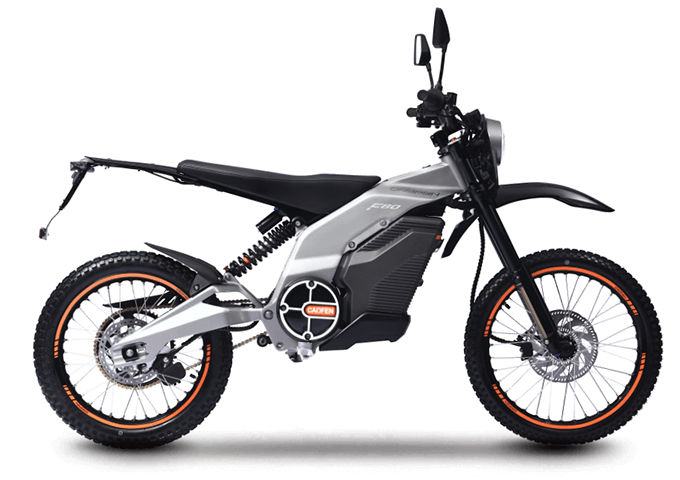

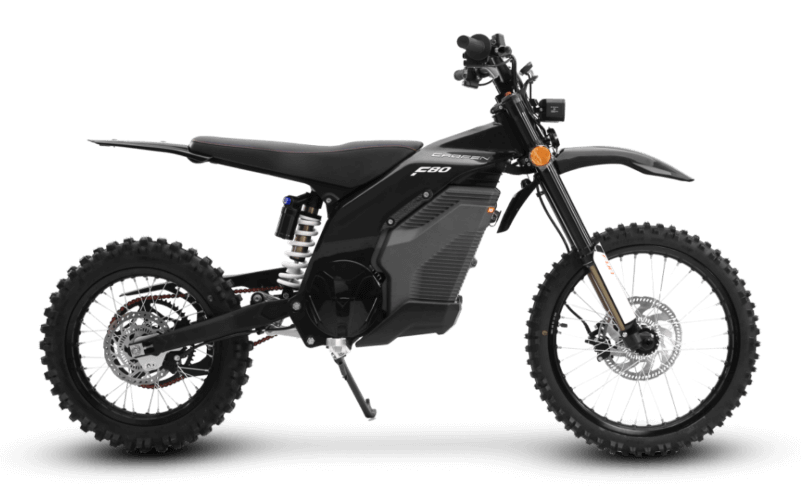

Model Comparison Table
|
 |
|
| Model | F80 DS-32 (72V32A) | F80 DS-48 (72V48A) |
| BATTERY | 72V32Ah Lithium NCM battery,liquid cooled, 21700 Cylindrical |
72V48Ah Lithium NCM battery,liquid cooled, 21700 Cylindrical |
| Type of Motor | Permanent Magnet Synchronous Motor | |
| Type of controller | Sine wave vector controller | |
| Overall size | 1950×785×1070mm | |
| Wheel base | 1300mm | |
| F/R Tyre | F80 DS-32 (72V32A) | F80 DS-48 (72V48A) |
| Battery Capacity | 2304Wh | 3456Wh |
| Rated Power | 4000W | |
| Power | 8000W | |
| Max Range | 100KM (@ 30 km/h) | 150KM (@ 30 km/h) |
| Max.Speed | 85km/h | |
| Rear torque | 260N.m | 260N.m |
| Gradeability | 40% slope | |
| Front fork stroke | 200mm | |
| Ground clearance | 265mm | |
| Seat Height | 830mm | |
| Vehicle weight | 81KG | 85KG |
| Max load | 100KG | |
| Wading depth | ＞600mm | |
| Charging time(220V) | 2h | 3h |
| Battery auxiliary heat | -40℃ normal charging | |
| Carton Packing sie | 1650*385*850mm | |
| Quantity（20/40/40HQ） | 40/86/128 | |
